RACKMOUNT CASES

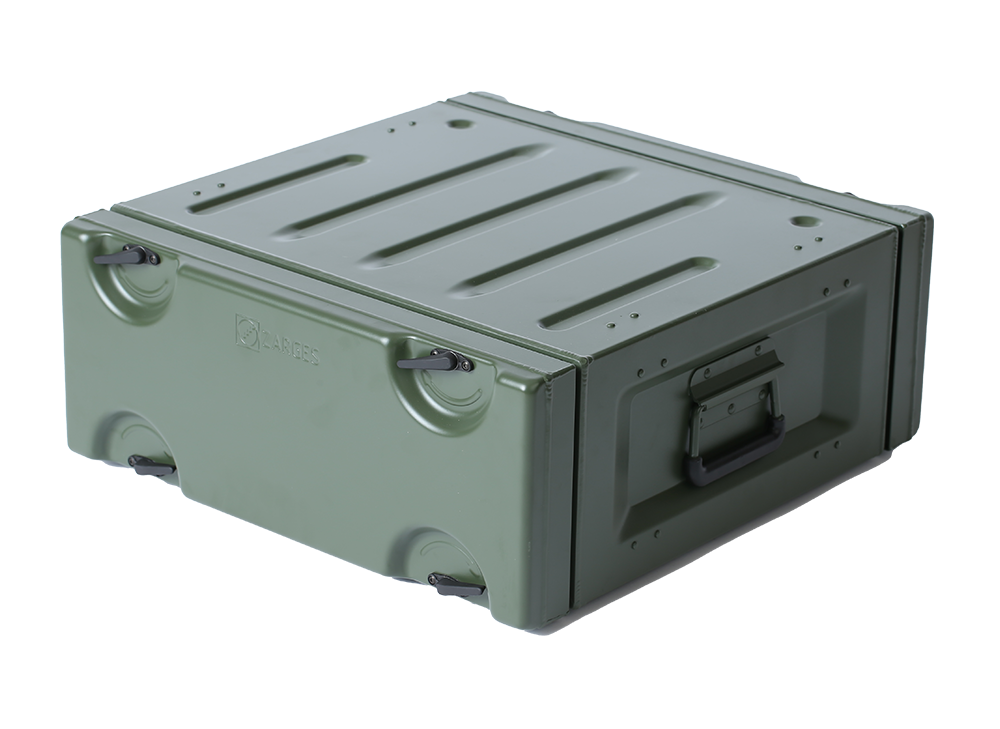

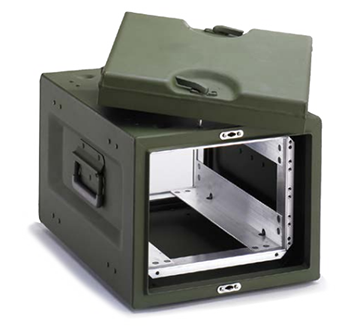

Zarges Mitraset is the benchmark in rackmount protection — lighter, stronger, and more compact than plastic alternatives. With shock and vibration protection exceeding military standards, plus options for EMI shielding, ventilation, and full customization, Mitraset Classic ensures absolute reliability. Available in 19” and 9.5” widths, it sets the standard for secure, efficient deployment.

MATERIAL

• 1.5 to 2.0 mm 5700-series aircraft grade aluminum

CONSTRUCTION

• Seal welded body and lids
• Triple mounted 45°isolation
• Integrated stacking knobs and recesses

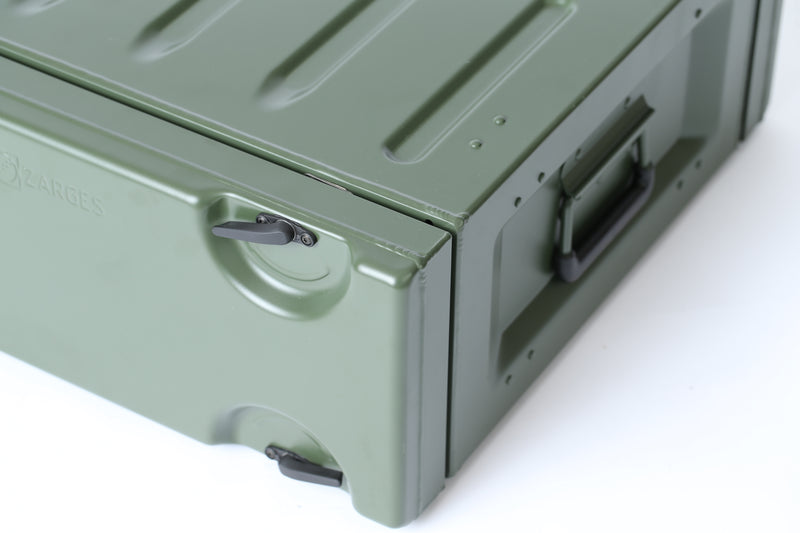

• Zarges’ exclusive quarter-turn latches guarantee a secure, airtight seal
• Solid rivets
• Standard ergonomic spring-loaded recessed handles

INGRESS PROTECTION

• IP 65 standard, IP 67 available

WEIGHT CAPACITY

• 220 lbs.

SIZES AVAILABLE

• Standard width of 19” or 9.5”, depth up to 40”, height up to 22U
• Available in limited standard sizes. Custom configurations are generally produced in lots of 10, with smaller quantities considered on request.

OPTIONS

• EMI Shielding
• Pressure relief valve
• Humidity indicator

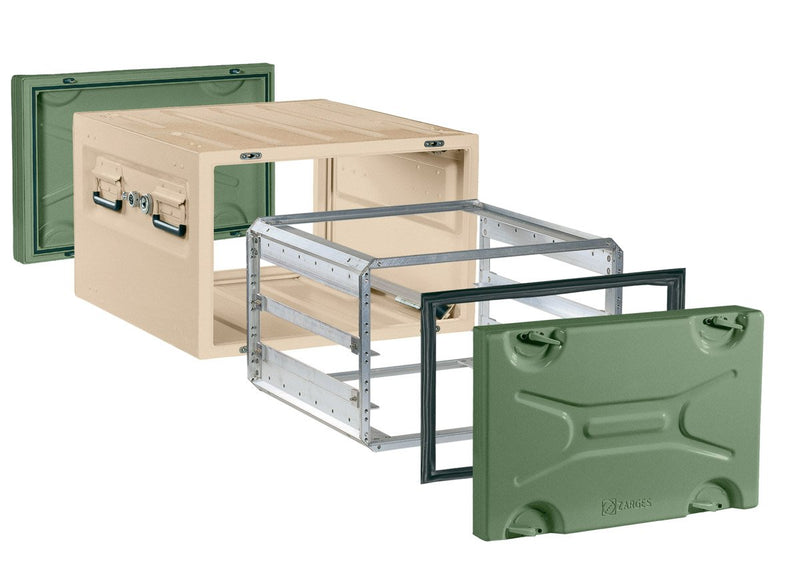

• Exclusive Mitraset RRF (Removable rack frame)
• Integrated I/O panels
• Handles upgradable to MOP (arctic mitten) handles
• Active ventilation compatible
• Case-to-case latching
• Lid hangers
• Various mobility & security options
• Tie-down/lifting rings
• Cable storage coil
• Lid storage pouch
• Drawers & shelves
• RAL color paints
• CARC paint
• Call for custom options
• Complies to DIN EN 60297-3-100 and EIA-310-E
• Meets all transport and environmental MIL-STD-810 standards.

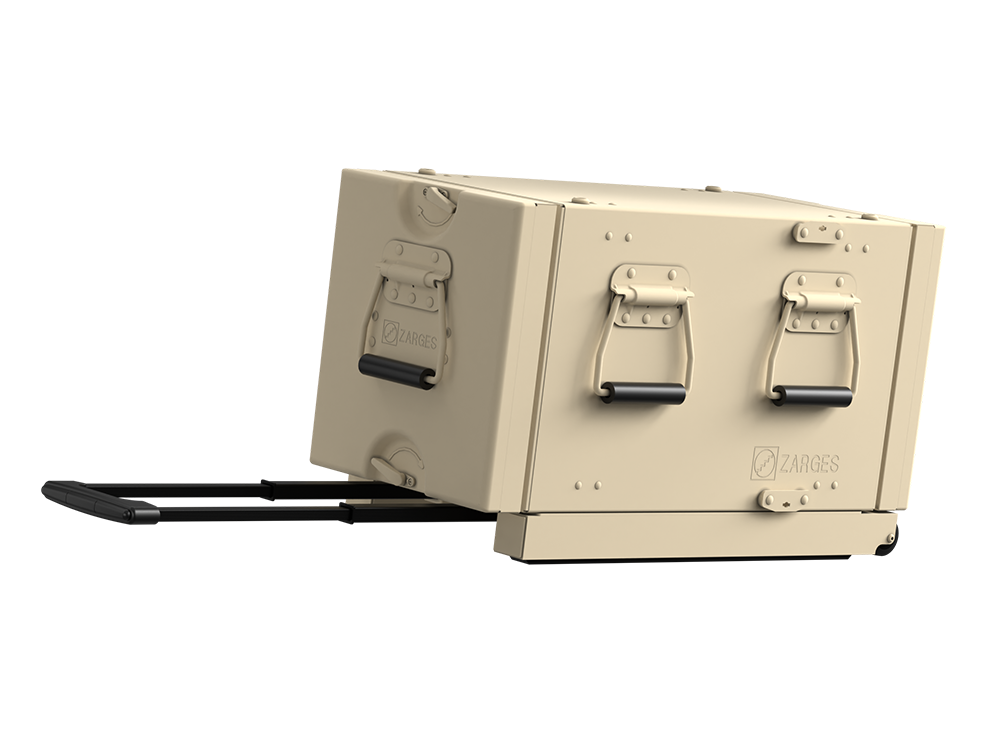

Zarges Mitraset Mobile delivers mission-critical performance in a transport-ready configuration, combining rugged rackmount protection with mobility for field operations.

MATERIAL

• 1.5 to 2.0 mm 5700-series aircraft grade aluminum

CONSTRUCTION

• Seal welded body and lids
• Triple mounted 45°isolation
• Integrated stacking knobs and recesses
• Zarges’ exclusive quarter-turn latches guarantee a secure, airtight seal
• Solid rivets
• Standard ergonomic spring-loaded recessed handles

INGRESS PROTECTION

• IP 65 standard, IP 67 available

WEIGHT CAPACITY

• 220 lbs.

SIZES AVAILABLE

• Standard width of 19” or 9.5”, depth up to 40”, height up to 22U
• Custom configurations are generally produced in lots of 10, with smaller quantities considered on request.

OPTIONS

• EMI Shielding
• Pressure relief valve
• Humidity indicator
• Exclusive Mitraset RRF (Removable rack frame)
• Integrated I/O panels
• Handles upgradable to MOP (arctic mitten) handles
• Active ventilation compatible
• Case-to-case latching
• Lid hangers
• Various mobility & security options
• Tie-down/lifting rings
• Cable storage coil
• Lid storage pouch
• Drawers & shelves
• RAL color paints
• CARC paint
• Call for custom options

SPECIFICATIONS

• Complies to DIN EN 60297-3-100 and EIA-310-E
• Meets all transport and environmental MIL-STD-810 standards.

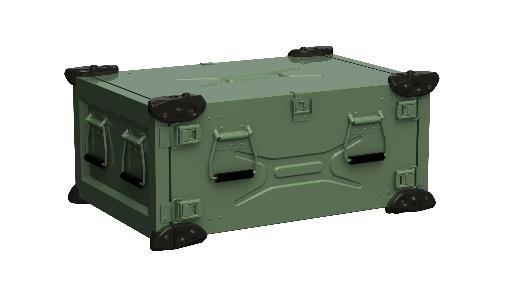

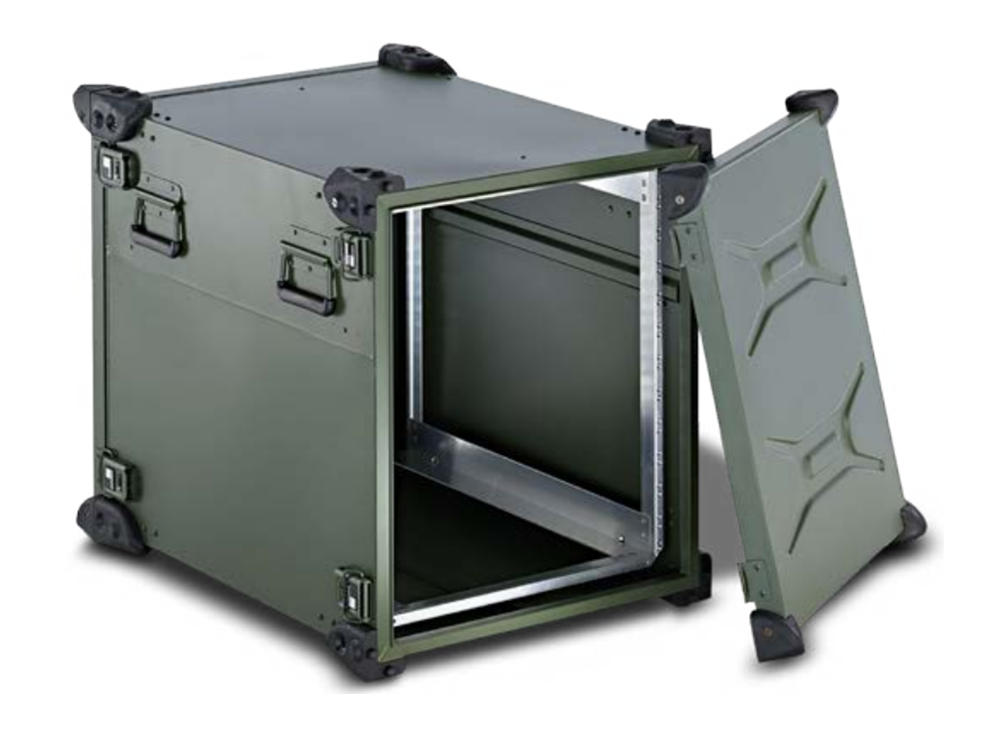

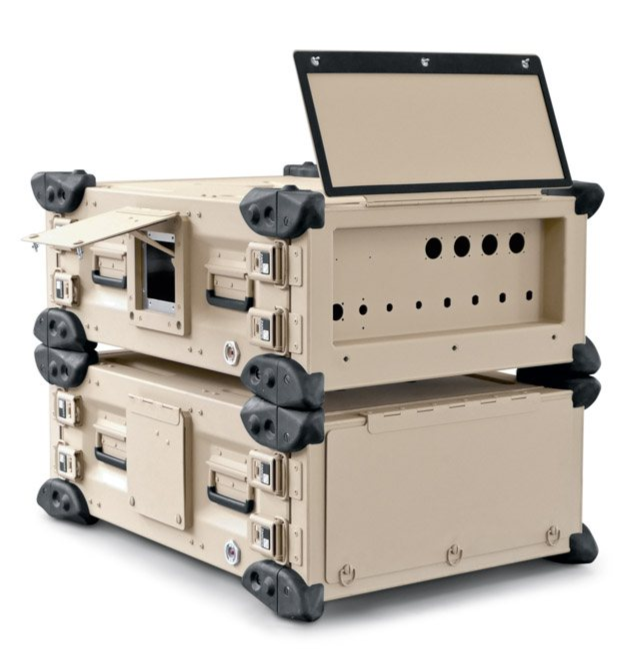

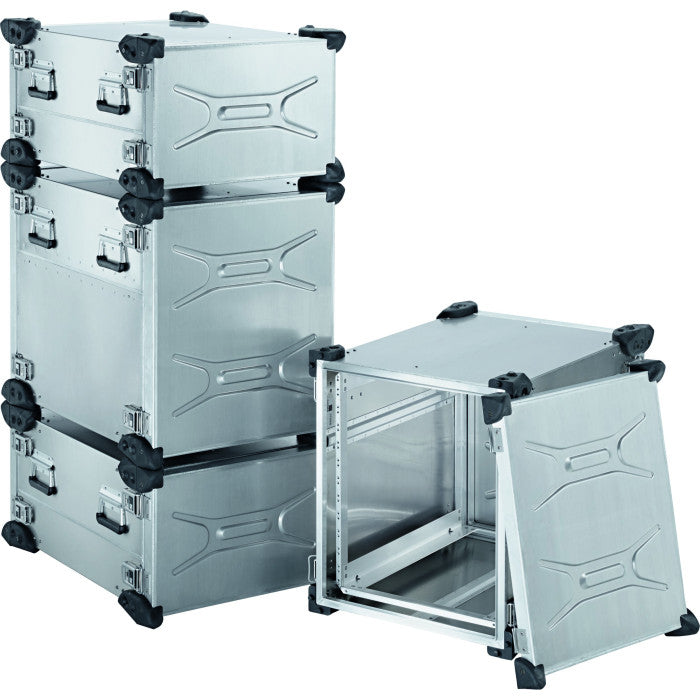

Zarges Mitraset Racklite is engineered for proven performance in a lighter, more agile format. Exclusive rubber corner bumpers provide superior drop protection and stable stacking. The Racklite Basic version shares the same core reliability and design, without the bumper protection.

MATERIAL

• 1.5 mm 5700-series aircraft grade aluminum

CONSTRUCTION

• Seal welded body and lids
• Double mounted 45°isolation
• Integrated stacking knobs and recesses
• Snap latches with padlock hasp
• Solid rivets
• Standard ergonomic spring-loaded handles
• Rubber corner bumpers

INGRESS PROTECTION

• IP 65, IP 67 available

WEIGHT CAPACITY

• 132 lbs.

SIZES AVAILABLE

• Standard width of 19” or 9.5”, depth up to 40”, height up to 12U
• Custom configurations are generally produced in lots of 10, with smaller quantities considered on request.

OPTIONS

• EMI Shielding
• Pressure relief valve
• Humidity indicator
• Exclusive Mitraset RRF (Removable rack frame)
• Integrated I/O panels
• Handles upgradable to MOP (arctic mitten) handles
• Active ventilation compatible
• Case-to-case latching
• Lid hangers
• Various mobility & security options
• Tie-down/lifting rings
• Cable storage coil
• Lid storage pouch
• Drawers & shelves
• RAL color paints
• CARC paint
• Call for custom options

SPECIFICATIONS

• Complies to DIN EN 60297-3-100 and EIA-310-E
• Meets all transport and environmental MIL-STD-810 standards.

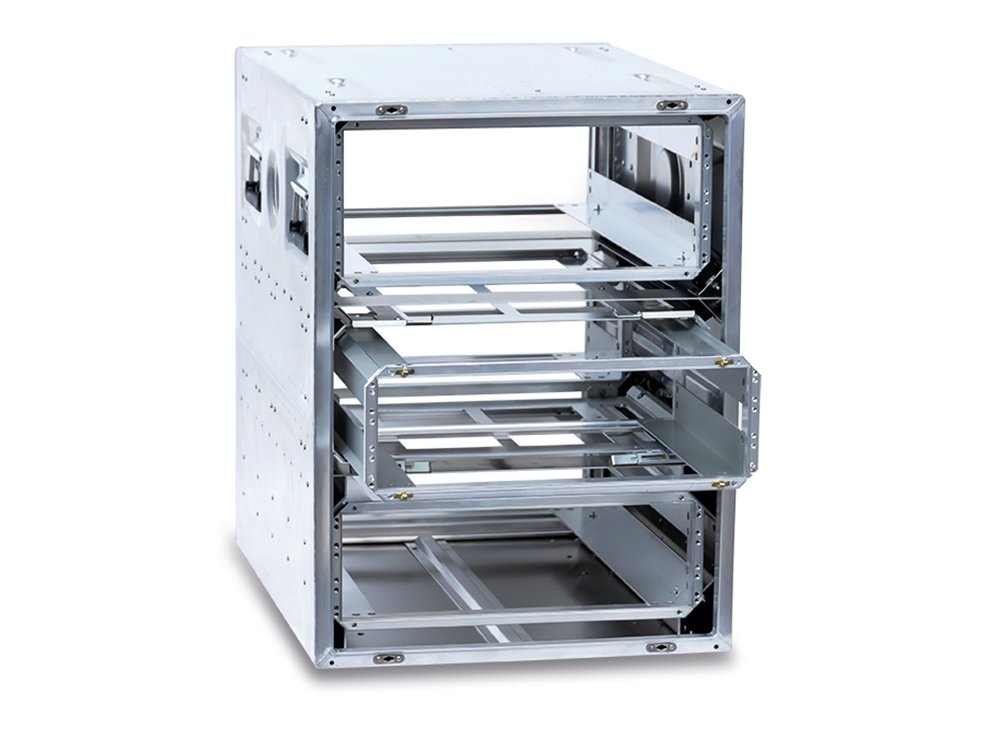

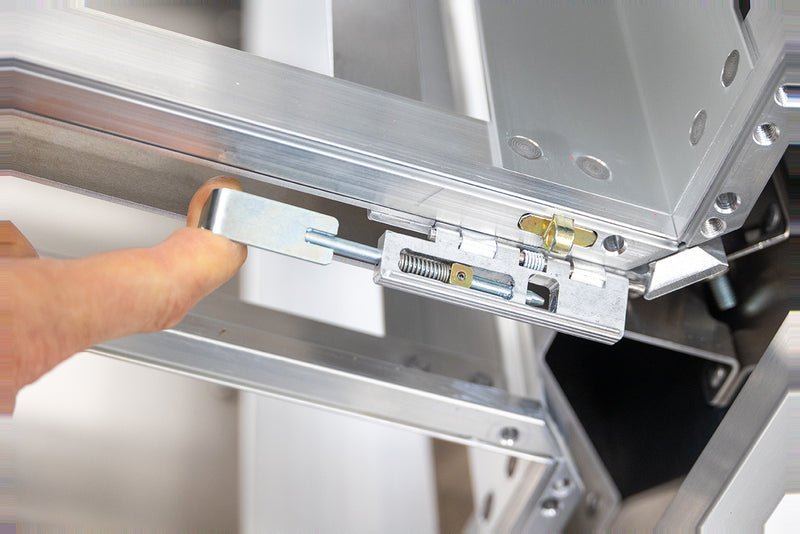

Zarges Mitraset Multiframe Combines all the performance of the Mitraset Classic with the ability to house multiple anti-vibration frames in a single unit — enabling components of different weights, functions, and damping requirements to operate together in one enclosure.

MATERIAL

• 1.5 to 2.0 mm 5700-series aircraft grade aluminum

CONSTRUCTION

• Seal welded body and lids
• Custom isolation based on specific requirements
• Integrated stacking knobs and recesses
• Zarges’ exclusive half-turn latches guarantee a secure, airtight seal
• Solid rivets
• Standard ergonomic spring-loaded recessed handles

INGRESS PROTECTION

• IP 65, IP 67 available

WEIGHT CAPACITY

• 220 lbs.

SIZES AVAILABLE

• Standard width of 19” or 9.5”, depth up to 40”, height up to 22U

• Custom configurations are generally produced in lots of 10, with smaller quantities considered on request.

OPTIONS

• EMI Shielding
• Pressure relief valve
• Humidity indicator
• Exclusive Mitraset RRF (Removable rack frame)
• Integrated I/O panels
• Handles upgradable to MOP (arctic mitten) handles
• Active ventilation compatible
• Case-to-case latching
• Lid hangers
• Various mobility & security options
• Tie-down/lifting rings
• Cable storage coil
• Lid storage pouch
• Drawers & shelves
• RAL color paints
• CARC paint
• Call for custom options

SPECIFICATIONS

• Complies to DIN EN 60297-3-100 and EIA-310-E
• Meets all transport and environmental MIL-STD-810 standards.
