K470+

6102430 331 L

Hood Case · units 40504 & 40506

$1,156.00
Color: Aluminum
Aluminum
1
SKU 6102430
Outside
30.83″ × 23.15″ × 32.99″
Volume
331 L
Weight
35.2 lbs
Ask a case expert

Up to 50%
Lighter than
plastic
Up to 20%
More interior
volume
−238°F to +302°F
Temperature
stability
2,000 lb
Stacking
capacity
MIL-STD-810
Military
tested
IP54
Dust &
water

Aluminum, fully welded

5005 aluminum sheet on a fully welded frame. Up to 50% lighter than a comparable plastic case.

Sealed to IP54

Sealed against dust and splashing water, with a rubber gasket all the way around the lid.

Stacks to 2,000 lb

Cast-aluminum stacking corners carry 2,000 lb, so cases of the same footprint stack securely.

Security that holds

The latches take a padlock or seal, and the hasps accept TSA locks. The keyed lock shown is the optional Lock and Key Set.

Make it yours

Add a foam liner, foam fill or KOR Technik VRS, then casters, mounts and pockets.

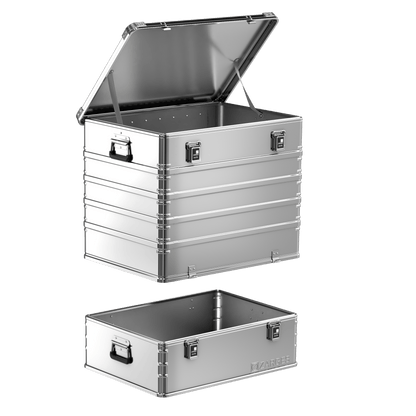

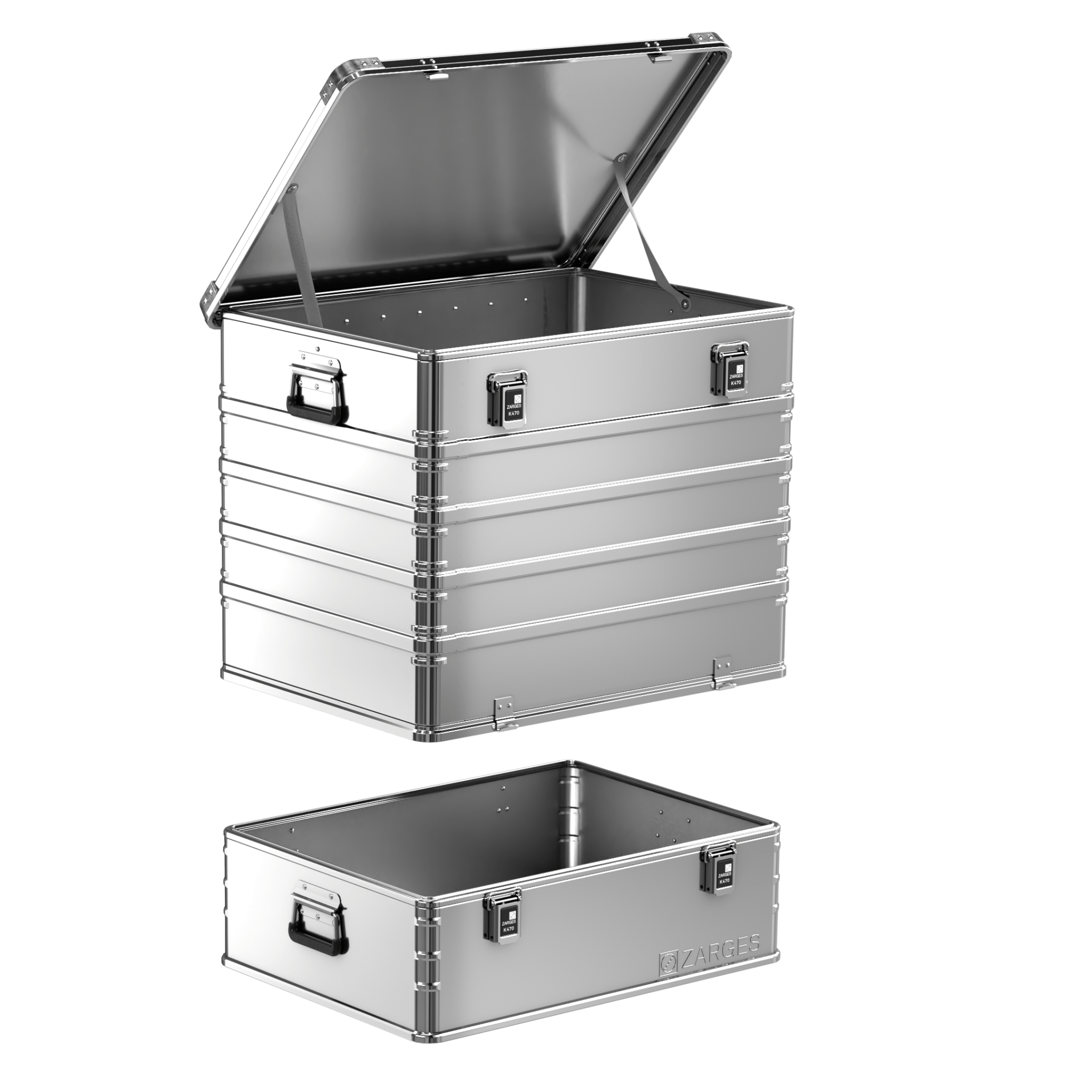

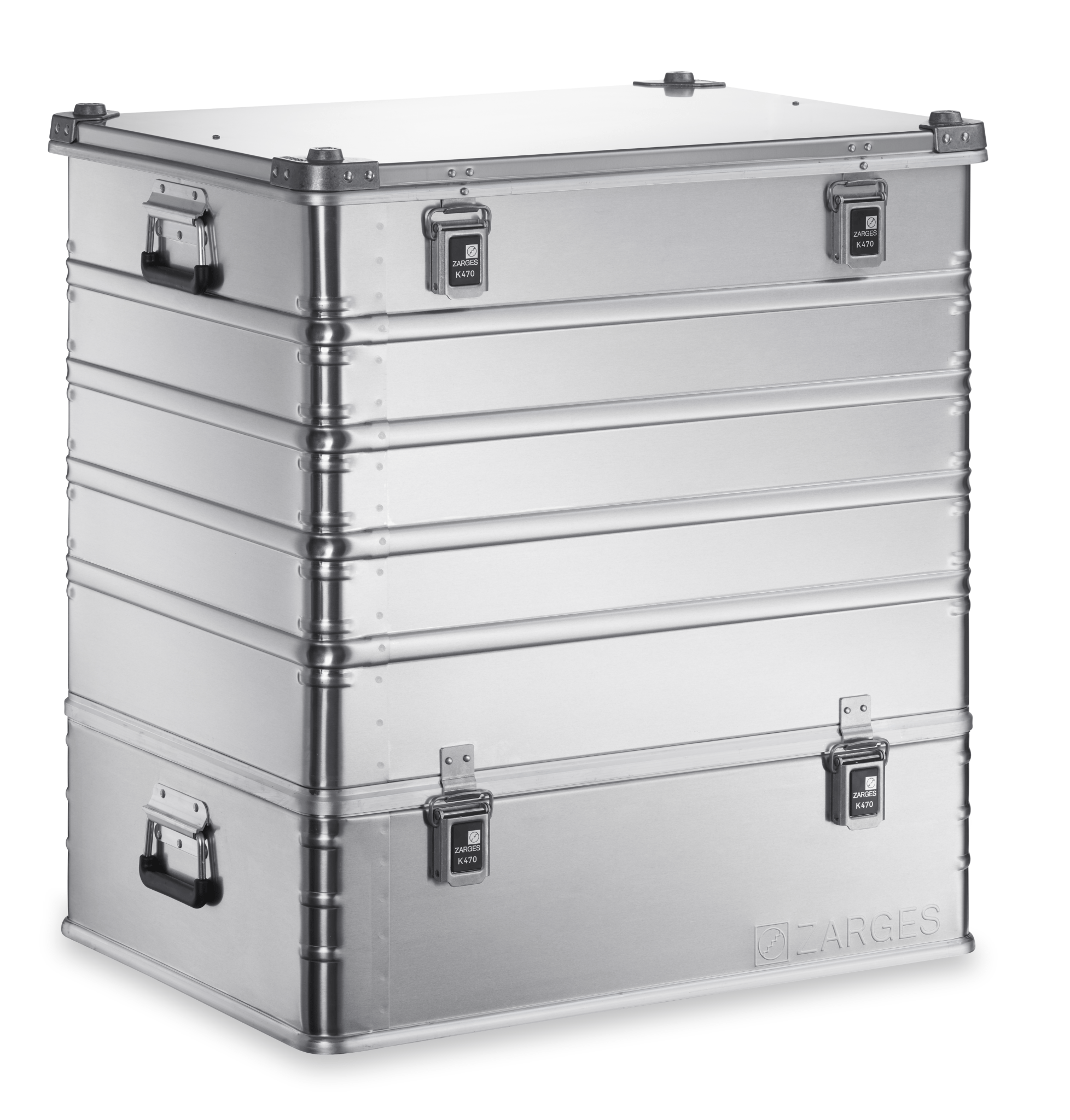

Zarges K470-Plus Hood Case Two-Part System (units 40504 & 40506)

The K470-Plus Hood Case (units 40504 & 40506) combines a compact, streamlined design with a unique two-part system, delivering military-grade protection built to endure extreme conditions. Engineered for strength, it shields gear from impact, dust, moisture, and supports stacked loads of over 2,000 lbs.

Why Zarges?

  • Lighter: Up to 50% lighter than plastic and 70% lighter than roadie cases

  • Stronger: MIL-STD-810 tested, dust & water resistant

  • Roomier: Up to 20% more interior space in a smaller footprint

  • Customizable: 50+ standard sizes, custom interiors, wide range of accessories

  • Certified: UN certification for hazardous materials available, ordered separately

Zarges K470-Plus Hood Case Features:

  • Two-part modular system with removable top and base for easy access and in-case operation of equipment

  • Flexible configuration allows combining upper and lower sections of different heights for custom setups

  • Reduced lifting effort — top section can be removed to shorten the lifting distance

  • Convenient access to equipment at any time during storage or transport

  • Ideal for sensitive or heavy equipment such as cameras, printers, measuring devices, and generators

  • Depending on height, beading all round and corner beading for extra stability and stackable with K470, K440, and K424 XC cases

Other Key Features:

  • Lightweight aluminum with greater interior volume than plastic alternatives

  • Cast-aluminum stacking corners and fully welded frame

  • IP54 sealed against dust and splashing water

  • Secure latches, lockable with padlocks or seals

  • Customizable Interior Options (production lead time begins after final design approval; see our Custom Foam Design Requirements)

Whether traveling, storing, or operating in the field, a Zarges case delivers luxuriously rugged military-grade protection and peace of mind.

Want to learn more? Head on over to the About Us page.

    Dimensions & weight
    Model / SKU6102430
    Interior (L × W × H)29.53" × 21.65" × 31.42"
    Exterior (L × W × H)30.83" × 23.15" × 32.99"
    Clearance (L × W)28.5" × 20.63"
    Volume331 L
    Weight (empty)35.2 lbs
    MaterialAircraft-grade aluminum
    ProtectionIP54 / MIL-STD-810
    Temperature stability−238°F to +302°F
    Made inGermany
    Warranty10 years

    Confirm fit before you order: all dimensions nominal ±2mm; internal dimensions with lid closed.

    Size, to scale
    ZARGES5′10″2′9″ tall

    6102430 331 L — About waist height on a 5′10″ adult.

    Certified & tested
    MIL-STD-810
    Tested to US military methods for salt fog and fungus.
    Test results
    IP54 Rated
    Sealed against dust and splashing water from any direction.
    TSA Compliant
    Accepted as checked baggage on major airlines. Locking hasps accept TSA locks.
    Registered US Gov Supplier
    CAGE code 51YQ0 — available for direct federal procurement.
    Questions

    People are asking

    Is this case suitable for harsh environments?
    Which interior should I choose?
    Can I add accessories later?
    What is the warranty?
    Does this case meet TSA and airline requirements?

    Still have questions? , contact us or call 704-357-6285.

    Reviews

    What customers say

    Built past the spec

    Overkill is
    the point

    Every ZARGES case is built well past what its job requires, and backed by a 10‑year warranty, so you buy it once. Not sure which size? The Case Finder matches your gear to the right one.
