K470-Plus Hood Case (units 40504 & 40505)
1 / 4

K470-Plus Hood Case (units 40504 & 40505)

SKU: 31010465
$1,095.00
1
2,000+ lbs
Stacking
capacity
IP54
Dust &
water
MIL-STD 810G
Military
tested
−65°F to 176°F
Tested
range
Up to 50%
Lighter than
plastic
20,000+
Latch
cycles

K470-Plus Hood Case (units 40504 & 40505)

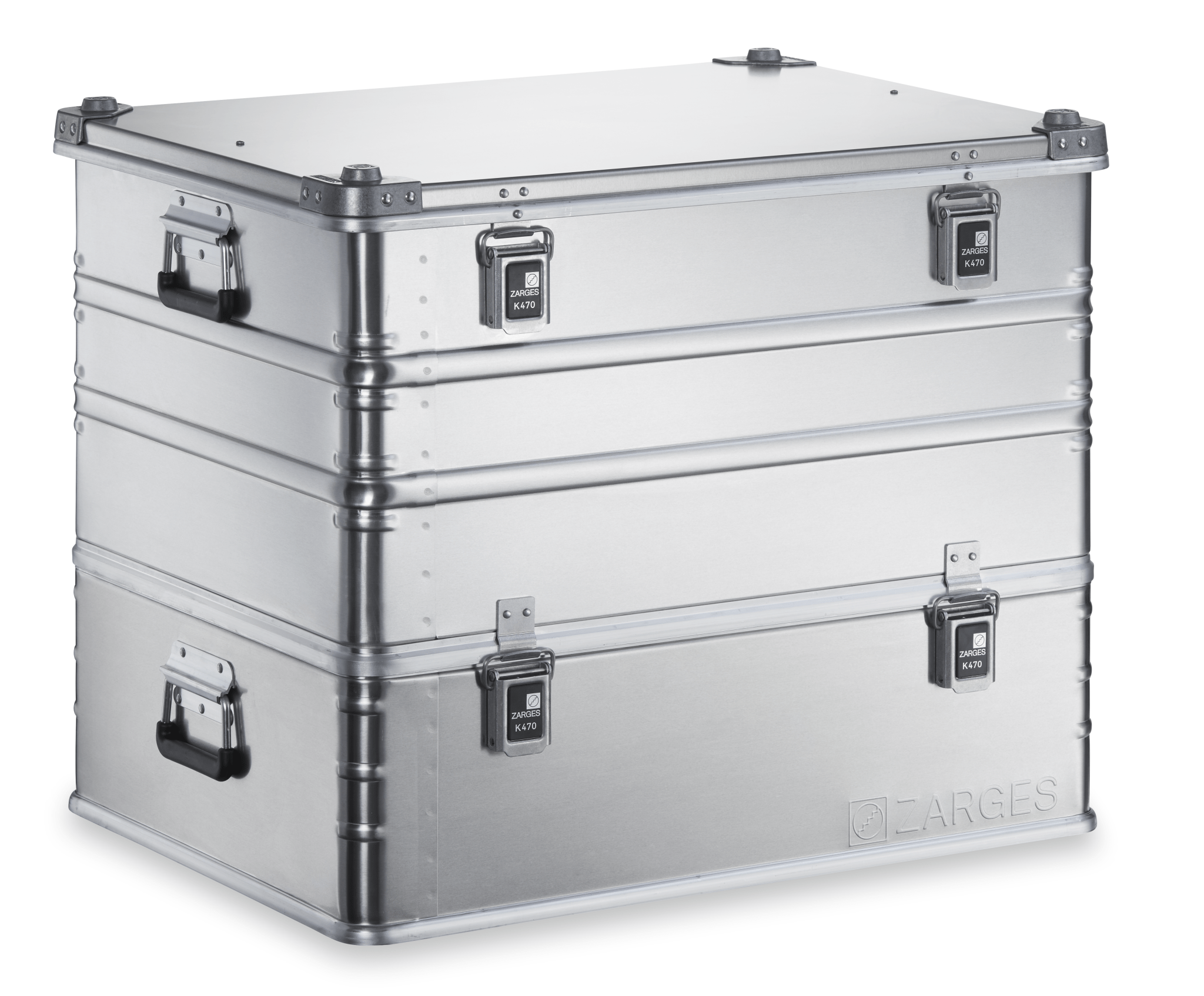

Zarges K470-Plus Hood Case Two-Part System (units 40504 & 40505)

The K470-Plus Hood Case (units 40504 & 40505) combines a compact, streamlined design with a unique two-part system, delivering military-grade protection built to endure extreme conditions. Engineered for strength, it shields gear from impact, dust, moisture, and supports stacked loads of over 2,000 lbs.

Why Zarges?

  • Lighter: Up to 50% lighter than plastic and 70% lighter than roadie cases

  • Stronger: MIL-STD-810 tested, dust & water resistant

  • Roomier: 15–20% more interior space in a smaller footprint

  • Customizable: 50+ standard sizes, custom interiors, wide range of accessories

  • Certified: UN certification for hazardous materials available, ordered separately

Zarges K470-Plus Hood Case Features:

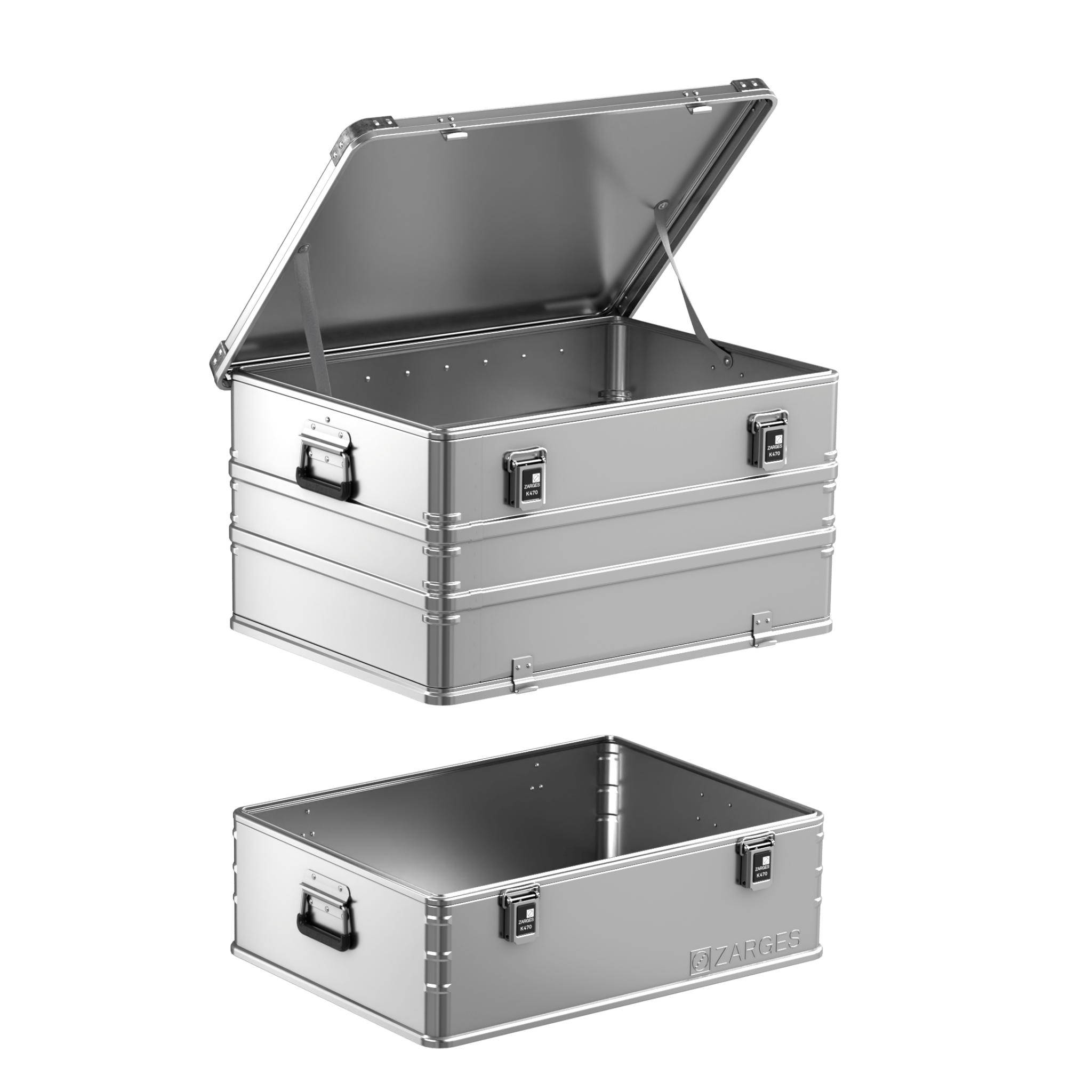

  • Two-part modular system with removable top and base for easy access and in-case operation of equipment

  • Flexible configuration allows combining upper and lower sections of different heights for custom setups

  • Reduced lifting effort — top section can be removed to shorten the lifting distance

  • Convenient access to equipment at any time during storage or transport

  • Ideal for sensitive or heavy equipment such as cameras, printers, measuring devices, and generators

  • Depending on height, beading all round and corner beading for extra stability and stackable with K470, K440, and K424 XC cases

Other Key Features:

  • Lightweight aluminum with greater interior volume than plastic alternatives

  • Cast-aluminum stacking corners and fully welded frame

  • IP54 sealed against dust and splashing water

  • Secure latches rated for 20,000+ cycles, lockable with padlocks or seals

  • Customizable Interior Options (production lead time begins after final design approval; see our Custom Foam Design Requirements)

Whether traveling, storing, or operating in the field, a Zarges case delivers luxuriously rugged military-grade protection and peace of mind.

Want to learn more? Head on over to the About Us page.

Dimensions & weight
Model / SKU31010465
Interior (L × W × H)29.53" × 21.65" × 23.54"
Exterior (L × W × H)30.83" × 23.15" × 25.12"
Clearance (L × W)28.5" × 20.63"
Volume248L
Weight (empty)31.1 lbs
MaterialAircraft-grade aluminum
ProtectionIP54 / MIL-STD-810G
Temp rangeTested −65°F to +176°F
Latch cycles20,000+
Made inGermany
Warranty10 years

Confirm fit before you order: all dimensions nominal ±2mm; internal dimensions with lid closed.

Size, to scale
ZARGES5′10″2′1″ tall

K470-Plus Hood Case (units 40504 & 40505) — About knee height on a 5′10″ adult.

Certified & tested
MIL-STD-810G
Tested to US military methods for rain, blowing dust, salt fog and fungus.
See the test results
IP54 Rated
Protection against dust ingress and water spray from any direction.
TSA Compliant
Accepted as checked baggage on major airlines. Locking hasps accept TSA locks.
Registered US Gov Supplier
CAGE code 51YQ0 — available for direct federal procurement.
